·液壓驅動隔膜泵／柱塞泵 ·隔膜泵頭內置可調壓力釋放閥 ·平緩脈動設計
·高性能隔膜泵頭無需隔膜護盤 ·可手動，電動，變頻，氣動調節流量 ·機械自動補油閥確保計量精度
·高精度進，出口單向止回閥 ·在泵運行或停止?fàn)顟B(tài)均可調節流量 ·PTFE復合材料隔膜，防腐性能更佳，更耐久
·調節比：100：10，精度：±1% ·內部增壓潤滑系統 ·PVC，316不銹鋼，合金20，哈氏合金泵頭
·可單臺工作，也可多臺并聯工作 ·泵頭種類：高性能隔膜／圓盤隔膜／柱塞

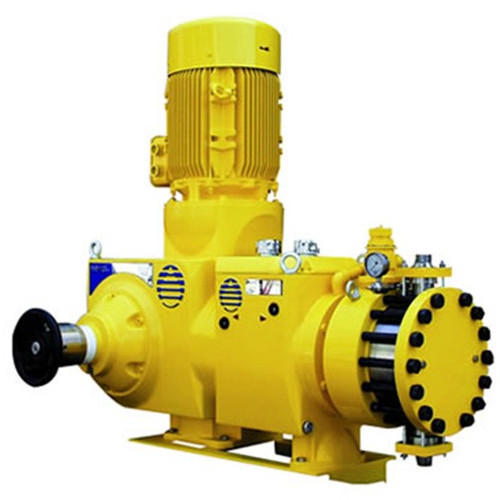

Milroyal系列-產品特點
·馬達驅動液壓隔膜計量泵 ·手動，電動，調頻，氣動控制
·最大流量：8150L/H ·最高壓力：690BarG
·三大系列：高性能隔膜泵、單金屬隔膜泵、柱塞計量泵
| 美國米頓羅MBH系列液壓隔膜計量泵 柱塞直徑 & 材質代號 | |||||
| 316 |
PVC |
氟塑料襯里 |
20#合金 | 哈氏合金C22 | |
| 柱塞直徑 | 編碼 | ||||
| 7/16" | MBH071 | N/A | N/A | MBH075 | MBH076 |
|
9/16" |
MBH091 | N/A | N/A | MBH095 | MBH096 |
| 5/8" | MBH101 | N/A | N/A | MBH105 | MBH106 |
| 1" | MBH161 | MBH162 | MBH163 | MBH165 | MBH166 |
| 1-1/4" | MBH201 | MBH202 | MBH203 | MBH205 | MBH206 |
| 1-1/2" | MBH241 | MBH242 | MBH243 | MBH245 | MBH246 |
| 2" | MBH321 | MBH322 | MBH323 | MBH325 | MBH326 |
| 2-1/2" | MBH401 | MBH402 | MBH403 | MBH405 | MBH406 |
| 3-1/2" | MBH561 | MBH562 | MBH563 | MBH565 | MBH566 |
| 4" | MBH641 | MBH642 | MBH643 | MBH645 | MBH646 |
| 氟塑料襯里泵，工作壓力不超過10Bar，介質溫度不超過85℃ | |||||
| Milroyal B 系列高性能隔膜泵 流量/壓力表（0-2616L/H，0-250BarG） | |||||||||||||||||
|
柱塞 直徑 |
變速比 代碼 |
沖程 SPM |
最大 流量 |
0.25KW | 0.37KW | 0.55KW | 0.75KW | 1.1KW | 1.5KW | 2.2KW | |||||||
| 流量 | 壓力 | 流量 | 壓力 | 流量 | 壓力 | 流量 | 壓力 | 流量 | 壓力 | 流量 | 壓力 | 流量 | 壓力 | ||||
| L/H | L/H | bar | L/H | bar | L/H | bar | L/H | bar | L/H | bar | L/H | bar | L/H | bar | |||
|
11mm
7/16"
07- |
8K | 40 | 6 | 5 | 250 | 5 | 250 | - | - | - | - | - | - | - | - | - | - |
| 8J | 57 | 9 | 8 | 123 | 7 | 244 | 7 | 250 | - | - | - | - | - | - | - | - | |
| 8H | 79 | 13 | 12 | 84 | 10 | 184 | 9 | 250 | - | - | - | - | - | - | - | - | |
| 8G | 93 | 15 | 15 | 58 | 13 | 144 | 11 | 250 | - | - | - | - | - | - | - | - | |
| 8F | 117 | 19 | 19 | 44 | 17 | 112 | 15 | 223 | 14 | 250 | - | - | - | - | - | - | |
| 8M | 157 | 25 | 25 | 33 | 23 | 84 | 20 | 168 | 18 | 207 | - | - | - | - | - | - | |
|
14mm
9/16"
09- |
8K | 40 | 12 | 11 | 129 | 10 | 207 | 9 | 250 | - | - | - | - | - | - | - | - |
| 8J | 57 | 17 | 16 | 72 | 15 | 136 | 14 | 205 | 12 | 250 | - | - | - | - | - | - | |
| 8H | 79 | 23 | 22 | 48 | 21 | 101 | 20 | 151 | 18 | 228 | 17 | 250 | - | - | - | - | |
| 8G | 93 | 28 | 27 | 37 | 25 | 84 | 24 | 127 | 22 | 204 | 20 | 250 | - | - | - | - | |
| 8F | 117 | 35 | 34 | 28 | 33 | 67 | 32 | 101 | 29 | 179 | 25 | 250 | 25 | 250 | - | - | |
| 8M | 157 | 46 | 45 | 21 | 43 | 50 | 42 | 76 | 38 | 135 | 33 | 203 | 33 | 230 | 32 | 250 | |
|
16mm
5/8"
10- |
8K | 40 | 17 | 15 | 126 | 13 | 212 | 13 | 224 | - | - | - | - | - | - | - | - |
| 8J | 57 | 23 | 23 | 57 | 21 | 114 | 19 | 204 | 18 | 224 | - | - | - | - | - | - | |
| 8H | 79 | 32 | 32 | 38 | 30 | 89 | 28 | 159 | 25 | 218 | 24 | 224 | - | - | - | - | |
| 8G | 93 | 38 | 38 | 25 | 37 | 69 | 33 | 133 | 32 | 181 | 29 | 224 | - | - | - | - | |
| 8F | 117 | 48 | 48 | 18 | 47 | 52 | 43 | 110 | 42 | 146 | 38 | 220 | 37 | 224 | 36 | 240 | |
| 8M | 157 | 63 | 64 | 14 | 62 | 39 | 57 | 83 | 55 | 110 | 50 | 166 | 49 | 180 | 47 | 240 | |
|
25mm
1"
16- |
8K | 40 | 44 | 43 | 41 | 42 | 66 | 41 | 86 | - | - | - | - | - | - | - | - |
| 8J | 57 | 60 | 59 | 23 | 58 | 44 | 57 | 64 | 55 | 86 | - | - | - | - | - | - | |
| 8H | 79 | 82 | 82 | 15 | 81 | 31 | 79 | 48 | 77 | 72 | 75 | 86 | - | - | - | - | |
| 8G | 93 | 98 | 98 | 12 | 97 | 26 | 95 | 40 | 93 | 64 | 89 | 86 | - | - | - | - | |
| 8F | 117 | 123 | 123 | 8 | 123 | 22 | 121 | 31 | 118 | 57 | 114 | 85 | 113 | 86 | - | - | |
| 8M | 157 | 163 | 163 | 6 | 162 | 16 | 160 | 24 | 156 | 43 | 151 | 64 | 149 | 71 | 145 | 86 | |
|
32mm
1-1/4"
20- |
8K | 40 | 66 | 66 | 26 | 64 | 41 | 63 | 53 | - | - | - | - | - | - | - | - |
| 8J | 57 | 95 | 95 | 14 | 93 | 27 | 92 | 41 | 90 | 53 | - | - | - | - | - | - | |
| 8H | 79 | 126 | 126 | 9 | 126 | 20 | 124 | 30 | 122 | 46 | 120 | 53 | - | - | - | - | |
| 8G | 93 | 152 | 152 | 7 | 151 | 17 | 150 | 25 | 148 | 41 | 144 | 53 | - | - | - | - | |
| 8F | 117 | 193 | 193 | 5 | 193 | 13 | 192 | 20 | 188 | 36 | 184 | 50 | 183 | 53 | - | - | |
| 8M | 157 | 255 | 255 | 4 | 255 | 9 | 254 | 15 | 250 | 27 | 244 | 41 | 243 | 44 | 235 | 53 | |
|
38mm
1-1/2"
24- |
8K | 40 | 108 | 108 | 16 | 106 | 26 | 105 | 34 | - | - | - | - | - | - | - | - |
| 8J | 57 | 152 | 152 | 8 | 151 | 17 | 150 | 26 | 148 | 34 | - | - | - | - | - | - | |
| 8H | 79 | 205 | 205 | 6 | 205 | 13 | 204 | 19 | 202 | 29 | 200 | 34 | - | - | - | - | |
| 8G | 93 | 243 | 243 | 4 | 243 | 11 | 243 | 16 | 240 | 25 | 237 | 34 | - | - | - | - | |
| 8F | 117 | 306 | 306 | 3 | 306 | 8 | 306 | 13 | 303 | 23 | 300 | 34 | 298 | 34 | - | - | |
| 8M | 157 | 405 | 405 | 2 | 405 | 6 | 405 | 9 | 402 | 17 | 398 | 25 | 395 | 28 | 383 | 34 | |
|
51mm
2"
32- |
8K | 40 | 164 | 164 | 11 | 164 | 17 | 163 | 21 | - | - | - | - | - | - | - | - |
| 8J | 57 | 237 | 237 | 5 | 237 | 11 | 236 | 16 | 235 | 21 | - | - | - | - | - | - | |
| 8H | 79 | 318 | 318 | 3 | 318 | 7 | 318 | 12 | 318 | 18 | 316 | 21 | - | - | - | - | |
| 8G | 93 | 378 | - | - | 378 | 6 | 378 | 9 | 378 | 16 | 376 | 21 | - | - | - | - | |
| 8F | 117 | 477 | - | - | 477 | 5 | 477 | 7 | 477 | 14 | 473 | 21 | - | - | - | - | |
| 8M | 157 | 632 | - | - | 632 | 4 | 632 | 5 | 632 | 10 | 626 | 17 | 618 | 21 | - | - | |
|
64mm
2-1/2"
40- |
8K | 40 | 262 | 262 | 6 | 262 | 11 | 262 | 11 | - | - | - | - | - | - | - | - |
| 8J | 57 | 375 | 375 | 3 | 375 | 6 | 375 | 11 | 375 | 11 | - | - | - | - | - | - | |
| 8H | 79 | 508 | - | - | 508 | 4 | 508 | 7 | 508 | 11 | 508 | 11 | - | - | - | - | |
| 8G | 93 | 603 | - | - | 603 | 4 | 603 | 6 | 603 | 9 | 603 | 11 | - | - | - | - | |
| 8F | 117 | 757 | - | - | - | 757 | 4 | 757 | 8 | 757 | 11 | - | - | - | - | ||
| 8M | 157 | 1003 | - | - | - | - | 1003 | 3 | 1003 | 6 | 1003 | 9 | 1000 | 11 | - | - | |
|
89mm
3-1/2"
56- |
8K | 40 | 536 | - | - | 536 | 5 | 536 | 7 | - | - | - | - | - | - | - | - |
| 8J | 57 | 763 | - | - | - | - | 763 | 4 | 763 | 7 | - | - | - | - | - | - | |
| 8H | 79 | 1041 | - | - | - | - | 1041 | 3 | 1041 | 5 | 1041 | 7 | - | - | - | - | |
| 8G | 93 | 1233 | - | - | - | - | - | - | 1233 | 4 | 1233 | 7 | - | - | - | - | |
| 8F | 117 | 1577 | - | - | - | - | - | - | 1578 | 4 | 1578 | 6 | 1578 | 7 | - | - | |
| 8M | 157 | 2089 | - | - | - | - | - | - | 2090 | 3 | 2090 | 4 | 2090 | 5 | - | ||
|
102mm
4"
64- |
8K | 40 | 683 | - | - | 682 | 3 | 682 | 5 | - | - | - | - | - | - | 2080 | 7 |
| 8J | 57 | 972 | - | - | - | - | 972 | 3 | 972 | 5 | - | - | - | - | - | - | |
| 8H | 79 | 1321 | - | - | - | - | - | - | 1322 | 4 | 1322 | 5 | - | - | - | - | |
| 8G | 93 | 1571 | - | - | - | - | - | - | 1571 | 3 | 1571 | 5 | - | - | - | - | |
| 8F | 117 | 1975 | - | - | - | - | - | - | 1974 | 3 | 1974 | 5 | 1974 | 5 | - | - | |
| 8M | 157 | 2617 | - | - | - | - | - | - | 2616 | 2 | 2616 | 4 | 2616 | 4 | 2603 | 5 | |
|
注： 美國米頓羅MBH系列液壓隔膜計量泵沖程長度38.1mm (1)塑料材質泵頭使用上限從10.3bar@20℃線性降低到4.5bar@60℃ (2)流量衰減，當壓力超過14bar時，壓力每升高7bar，流量降低0.8%；當增加隔膜破裂檢測時，流量降低5% (3)3bar壓力下最大流量 |
|||||||||||||||||
